Each SR-Series short range Mobile booster/repeater standard package consists of basically all what you needs:
- 1 – Outdoor antenna (including 5 meters standard cable)
- 2 – Indoor antenna
- 3 – Power Adapter
- 4 – User’s manual
- 5 – Mobile booster/repeater/amplifier
You only need to choose the outdoor antenna type according to your need, and antenna extension cable length if the included 5 meters cable is not enough for your case. (Antenna price are included in the standard package price, but extension cable must purchase at additional cost.)
Mobile Booster Selection Guideline:
1. Mobile Booster/Repeater Package Selection
| Products | For Service Provider | Description |
| GSM900 | Maxis, Celcom, UMobile | Voice only |
| GSM1800 | Digi | Voice only |
| WCDMA2100 (3G) | Maxis, Celcom, U Mobile, Digi | 3G/HSDPA Data |
| Dual Band (GSM900/GSM1800) | Maxis, Celcom, U Mobile, Digi | Voice Only |
| Tri-Band (GSM900/GSM1800/3G) | Maxis, Celcom, U Mobile, Digi | Voice + Data |
For other countries network, please check the following link: http://www.worldtimezone.com/gsm.html
Short Range (< 300m2) or Mid/Long Range (> 300m2) mobile booster ?
It all depends on your needs, if you need to boost mobile signal in a normal size living room or a small office, short range mobile booster should be enough to fulfill your needs. If you need to cover almost every area of a two or three storey houses, a big office or warehouse, or a big underground car park, a mid range or long range mobile booster with multiple omni-directional ceiling antenna are needed.
2. Outdoor Antenna Selection
Outdoor antenna are included in the standard product package, for short range single band booster package (i.e GSM900, GSM1800, WCDMA2100/3G ), customer could select the outdoor antenna base on your own needs
Yagi Antenna :
Yagi Antenna is directional antenna that mean it need to point to base station for best reception. Select this when outdoor signal is very weak. Install on Rooftop and can share with the pole for TV antenna.

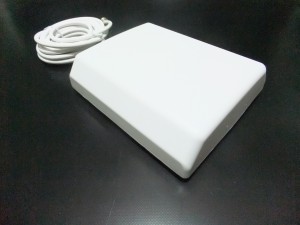

Panel Antenna :
Panel Antenna reception angle is wider (typ 90 degree) compare to yagi antenna. Select this if outdoor signal is acceptable. It could be Install on a pole, concrete wall, wooden structure or Window railing.
3. Outdoor Antenna Extension Cable Selection
The outdoor antenna cable is 5m as included in standard package, this may not be enough for some case. Fortunately, the low loss extension cables of 5m, 10m, 15m and 20m are available, please estimate the distance between outdoor antenna and booster and purchase the extension cable accordingly. Using outdoor antenna extension cable of more than 10m is not recommended for very weak outdoor signal condition especially for GSM 1800MHz and 3G 2100MHz signal, it is because the cable attenuates high frequency signal and the already weak outdoor signal will become even weaker before they reach the booster input. In this case, if 20m cable is needed, we would recommend user to purchase a 10m outdoor antenna extension cable and another 10m extension cable for indoor antenna, the indoor antenna is connected to the booster unit through this 10m extension cable and no longer connected directly to the booster output port.
Please take note that the cable and connector characteristic impedance is 50 Ohms, it is different than most of the cable used in broadcast TV application which is 75 ohms (eg: Astro cable – RG6 ).
4. Indoor Antenna Selection
For short range booster (Coverage < 300m2), the package come with an omni-directional indoor antenna (pole shape). User can purchase an indoor ceiling antenna (Dome shape) for better indoor coverage and able to hide the booster set and wiring above ceiling, what will be visible is the dome shape antenna on the ceiling, of course, the wiring will be more difficult and usually need to hire contractor to do the job for you. It is recommended to use only one indoor ceiling antenna for SR-Series short range booster. However, it is possible to connect two indoor ceiling antenna in some case by using a 2 ways power splitter and additional indoor antenna extension cable.
For Mr-Series mid range and LR-Series long range booster, in order to cover wide range of area, using one ceiling antenna is not enough, user need to purchase additional ceiling antenna and install them at different location that you would like to get stronger signal. For example first floor living room and study room, second floor bedroom 1, 2 and 3.
Experience has shown that an ceiling antenna mounted at 20 to 25 feet typically provides the best overall coverage. Mounting the antenna higher may actually reduce coverage, as the angle of radiation from the antenna is more outward than down. The antenna should be placed in the center of the desired coverage cell and in an open area for best performance.
5. Power Splitter Selection
To cover a wider range, users may purchase additional ceiling antenna, in this case, power splitter is needed. the input port of power splitter are connected to the output of the booster and the outputs of power splitter can connect to multiple numbers of ceiling antennas. For SR-Series short range booster, it is possible to connect two indoor ceiling antenna by using a 2 ways power splitter and additional indoor antenna extension cable.
6. Indoor Antenna Extension Cable Selection
If more than one indoor ceiling antenna are used, users need to purchase additional splitter and indoor antenna extension cable in order to connect all indoor antenna at each specific location.
Please refer to the Cable Connection Diagram below for more details of how to connect the splitter and ceiling antenna by using the extension cable and estimate the cable length needed accordingly.
User could also purchase indoor antenna extension cable to extend the distance between outdoor antenna and indoor antenna, as it is not good to have a very long cable connected between outdoor antenna and booster as explained in section 3.
Please take note that the cable and connector characteristic impedance is 50 Ohms, it is different than most of the cable used in broadcast TV application which is 75 ohms (eg: Astro cable – RG6 ).
Cable Connection Diagram
7. Cooling Fan Selection
In some bad ventilation area such as roof attic, the ambient temperature can be more than 10 degree higher than room temperature. As you may have notice the product specification guarantee the operating ambient temperature from -10 C to 50 C, so if you put your booster in a bad ventilation and enclosure area, it will shorten the booster life time significantly. If you plan to put your booster in roof attic and not sure how bad the air ventilation there, it is recommended to purchase a cooling fan to cool down the booster to prolong the booster life. Please check the Repeater Installation Guide for more details of how to install the cooling fan.
Product Catalogue:
SR-Series Short Range Booster (Coverage < 300 m 2):
Cooling Fan (AC-240V)
SOLD OUT
Cooling Fan is recommended if booster is placed in hot and not ventilated area such as roof attic.
Extension Cable for Indoor Antenna
Extension Cable for Indoor Antenna
Indoor Omni-Directional Ceiling Antenna
Indoor Omni-Directional Ceiling Antenna
Panel Antenna
Panel Antenna
Whip Antenna
Whip Antenna
EXTREME 4G EVOLUTION
SOLD OUT
RM 135.2 per month (24-Month Installment)
EXTREME 4G EVOLUTION (Refurbished)
SOLD OUT
RM 94.6 per month (24-Month Installment)
ULTIMATE All IN ONE
SOLD OUT
EXTREME All IN ONE 4G+ (1 Dome Version)
SOLD OUT
EXTREME All IN ONE 4G+
SOLD OUT
EXTREME All IN ONE
EXTREME All IN ONE (Refurbished)
RM 95.1 per month (24-Month Installment)
EXTREME 2G+4G
RM 175.42 per month (12-Month Installment)
EXTREME 2G + 4G (1-Dome Version)
RM 148.75 per month (12-Month Installment)
EXTREME 2G (1-Dome Version) (Refurbished)
RM104.13 per month (12-Month Installment)
EXTREME 2G (Refurbished)
RM 117 per month (12-Month Installment)
EXTREME UNIFI 3G + 4G
RM 83.6 per month (24-Month Installment)
EXTREME 2G + 3G
RM 175.42 per month (12-Month Installment)
EXTREME UNIFI 3G + 4G (1-Dome Version)
RM 93.6 per month (18-Month Installment)
EXTREME 2G + 3G (1-Dome Version)
RM 148.75 per month (12-Month Installment)
EXTREME UNIFI 3G + 4G (1-Dome Version) (Refurbished)
RM 98.3 per month (12-Month Installment)
EXTREME 2G + 3G (1-Dome Version) (Refurbished)
RM 119 per month (12-Month Installment)
EXTREME UNIFI 3G + 4G (Refurbished)
RM 117 per month (12-Month Installment)
EXTREME 2G + 3G (Refurbished)
RM 122.8 per month (12-Month Installment)
EXTREME 2G BASIC (1-Dome Version)
RM 112.1 per month (12-Month Installment)
EXTREME 3G (1-Dome Version)
RM 112.1 per month (12-Month Installment)
EXTREME UNIFI 4G (1-Dome Version) (Refurbished)
RM 156.9 per month (6-Month Installment)
EXTREME 4G BASIC (1-Dome Version) (Refurbished)
RM 156.9 per month (6-Month Installment)
EXTREME 3G (1-Dome Version) (Refurbished)
RM 156.9 per month (6-Month Installment)
EXTREME 2G BASIC (1-Dome Version) (Refurbished)
RM 156.9 per month (6-Month Installment)
EXTREME 4G (Refurbished)
RM 89.64 per month (18-Month Installment)
EXTREME 3G + 4G (Refurbished)
RM 89.64 per month (18-Month Installment)
EXTREME 3G + 4G
RM 96 per month (24-Month Installment)
EXTREME 4G (1-Dome Version) (Refurbished)
RM 115.8 per month (12-Month Installment)
EXTREME 3G + 4G (1-Dome Version) (Refurbished)
RM 115.8 per month (12-Month Installment)
EXTREME 3G + 4G (1-Dome Version)
RM 110.3 per month (18-Month Installment)
EXTREME 4G
RM 96 per month (24-Month Installment)
EXTREME 4G (1-Dome Version)
RM 110.3 per month (18-Month Installment)
EXTREME 4G BASIC (1-Dome Version)
EXTREME 4G EVOLUTION (1-Dome Version)
SOLD OUT
RM 122.7 per month (24-Month Installment)
EXTREME 4G EVOLUTION (1-Dome Version) (Refurbished)
SOLD OUT
RM 85.9 per month (24-Month Installment)
EXTREME ALL-IN-ONE (1-Dome Version)
EXTREME ALL-IN-ONE (1-Dome Version) (Refurbished)
RM 114.5 per month (18-Month Installment)
EXTREME UNIFI 4G (1-Dome Version)
RM 112.1 per month (12-Month Installment)
EXTREME PROFESSIONAL SERIES
EXTREME 2G BASIC
RM 91.4 per month (18-Month Installment)
EXTREME 3G
RM 91.4 per month (18-Month Installment)
EXTREME UNIFI 4G (Refurbished)
RM 96 per month (12-Month Installment)
EXTREME 4G BASIC (Refurbished)
RM 96 per month (12-Month Installment)
EXTREME 3G (Refurbished)
RM 96 per month (12-Month Installment)
EXTREME 2G BASIC (Refurbished)
RM 96 per month (12-Month Installment)
EXTREME 4G BASIC
RM 91.4 per month (18-Month Installment)
EXTREME UNIFI 4G
RM 91.4 per month (18-Month Installment)
EXPERIENCE YES 4G
RM 88.06 per month (18-Month Installment)
EXPERIENCE P1 4G
RM 88.06 per month (18-Month Installment)
EXPERIENCE 2G LC
RM 98.8 per month (12-Month Installment)
EXPERIENCE 2G
RM 115.4 per month (12-Month Installment)
EXPERIENCE PROFESSIONAL SERIES
EXPERIENCE ALL IN ONE LC
RM 132.08 per month (12-Month Installment)
EXPERIENCE ALL IN ONE
RM 99.2 per month (18-Month Installment)
EXPERIENCE 3G+ 4G LC
RM 98.8 per month (12-Month Installment)
EXPERIENCE 3G + 4G
RM 115.42 per month (12-Month Installment)
EXPERIENCE 2G + 3G LC
RM 98.8 per month (12-Month Installment)
EXPERIENCE 2G + 3G
RM 115.4 per month (12-Month Installment)
ECONOMIC ALL IN ONE
RM 83.3 per month (12-Month Installment)
ECONOMIC 2G (DIY)
Support All Telco 2G and Maxis/Celcom/Digi 4G LTE in some area
RM 114.2 per month (6-Month Installment)
ECONOMIC 2G
Support All Telco 2G and Maxis/Celcom/Digi 4G LTE in some area
RM 114.2 per month (6-Month Installment)
ECONOMIC 2G + 3G (DIY)
Support All Telco 2G and 3G (Except Digi 2G)
RM 114.2 per month (6-Month Installment)
ECONOMIC 2G + 3G
Support All Telco 2G and 3G (Except Digi 2G)
RM 114.2 per month (6-Month Installment)
ECONOMIC 2G-BASIC (DIY)
Support Maxis/Celcom 2G and 3G in some area
ECONOMIC 3G
Support Maxis/Celcom/DIGI/U Mobile 3G in some area
ECONOMIC 2G-BASIC
Support Maxis/Celcom 2G and 3G in some area
ECONOMIC 3G (DIY)
Support All Telco 3G (Except Maxis/Celcom 3G in some area)
Basic Package (Dual Band)
15 Days Warranty and Free Upgrade Option to Experience/Extreme Series
Basic Package (Single Band)
15 Days Warranty and Free Upgrade Option to Experience/Extreme Series
ECONOMIC 4G BASIC (DIY)
Support Maxis, Celcom, Digi 4G in some area
ECONOMIC 4G BASIC
Support Maxis, Celcom, Digi 4G in some area
ECONOMIC 3G + 4G (DIY)
Support All Telco 3G and 4G LTE for Maxis, Celcom, Digi in some area
RM 130.83 per month (6-Month Installment)
ECONOMIC 3G + 4G
Support All Telco 3G and 4G LTE for Maxis, Celcom, Digi in some area
RM 130.83 per month (6-Month Installment)
EXPERIENCE 4G BASIC LC
RM 130.85 per month (6-Month Installment)
EXPERIENCE 3G LC
RM 130.85 per month (6-Month Installment)
EXPERIENCE 2G BASIC LC
RM 130.85 per month (6-Month Installment)
EXPERIENCE 2G BASIC
RM 164.2 per month (6-Month Installment)
EXPERIENCE 3G
RM 164.2 per month (6-Month Installment)
EXPERIENCE 4G BASIC
300M Wifi Range Extender
SOLD OUT
4G+ Dual Band Router
SOLD OUT
4G LTE Modem Router
SOLD OUT
HomePlug PowerLine Adapter Range Extender (HyFi)
SOLD OUT
Outdoor Log Periodic Antenna
Outdoor High Gain Log Periodic Antenna
PABX Keyphone
SOLD OUT
PABX Main Unit ( 2CO 8EXT)
SOLD OUT
SMA Female to TS9 Adapter
RM1
MyMB Wifi N 300Mbps 16dBi 2.4GHz outdoor CPE
L Pole Bracket for Outdoor Antenna Mounting
Electronic Building Blocks
Concreate Ceiling Mount U-Bracket for Ceiling Antenna
Updating... MR-Series Mid Range Booster (Coverage: 300 ~ 800 m2):
Varies type of mid range repeater is available at My Mobile Signal Booster Shop. It is suitable for big residential property or office with area around 300m2 to 800m2.
The MR-Series Mid Range Repeater can support up to 5~6 indoor ceiling antenna due to their higher uplink / downlink gain and output power as compare to SR-Series short range booster.
Please visit the link : MR-Series Mid Range Booster or Contact us for more information
LR-Series Long Range Booster (Coverage: 800 ~ 5,000 m2):
Varies type of long range booster is available at My Mobile Signal Booster Shop. It is suitable for a big warehouse, big underground car park, office, commercial building and etc with area around 800m2 to 5000m2.
The LR-Series Long Range Booster can support up to 20+ indoor ceiling antenna due to their higher uplink / downlink gain and output power as compare to SR-Series or MR-Series booster.
Please visit the link : LR-Series Long Range Booster or Contact us for more information
